DFG – Façade Gratings

Large-Format Architectural Grids for Ventilated Facades.

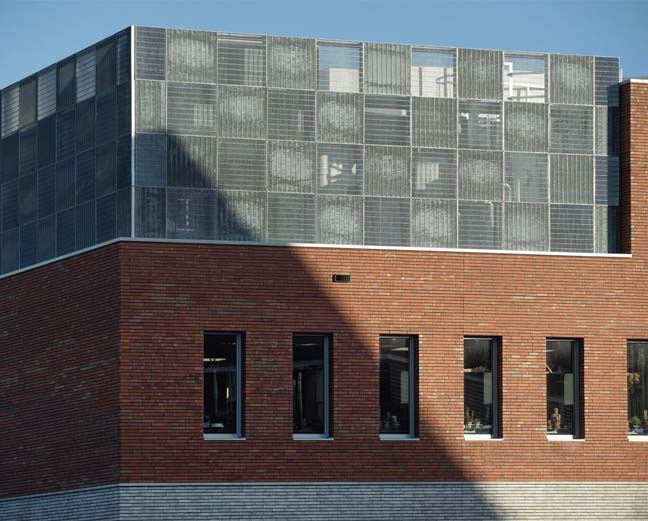

Dejo DFG Façade Gratings deliver strong structural performance with clean open-grid geometry, making them ideal for ventilated façades, screened elevations, and architectural cladding where durability and precision matter.

Designed for large-format façade areas, DFG provides maximum airflow, excellent daylight filtering, and the timeless aesthetic of a refined European pressure-locked grid system.

DFG façade panels are engineered using press-locked construction that provides exceptional rigidity, uniformity and dimensional accuracy across multi-storey building elevations.

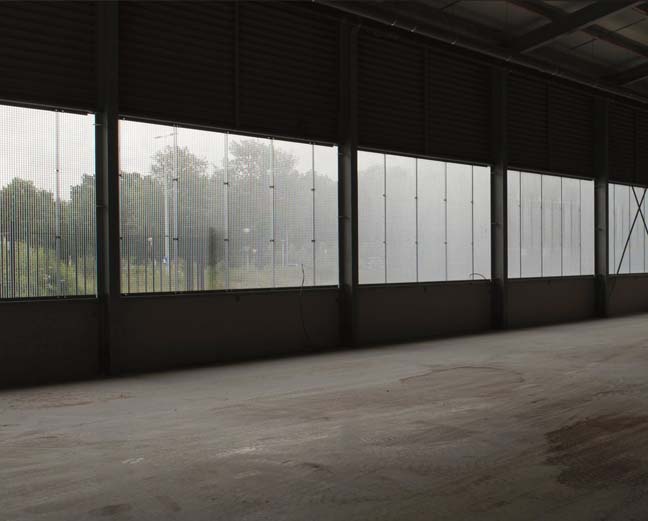

Their open grid pattern makes them perfect for timber storage facilities, carparks, industrial buildings, mechanical enclosures and commercial façades requiring long service life and minimal maintenance.

With multiple bar sizes, mesh options, and panel dimensions, DFG allows architects to maintain a consistent façade rhythm while tailoring transparency and strength to the application.

• Strong Architectural Expression
  Clean, rectilinear geometry suitable for civic-scale façades.
• High Ventilation Capacity
  Ideal for plant rooms, timber storage yards, industrial façades and carparks.
• Fast & Efficient Installation
  Compatible with threaded plates, welded plates or bed-hook mounting systems.
• High Strength-to-Weight Ratio
  Supports large panel sizes (up to 3 m²) with excellent load stability.
• Durable, Low Maintenance Finishes
  Optimised for Australian environmental conditions.

Bearing Bars

• Length: 140–3000 mm
• Height: 25–60 mm
• Thickness: 3 mm
• Available sizes: 25×3, 30×3, 40×3, 45×3, 50×3, 60×3, 70×3 mm

Filling Bars

• Length: 140–1200 mm
• Standard: 5×8 mm round bar

Panels

• Area: 0.2–3.0 m²
• Ratio: 1:3 or 3:1 recommended

Fixings

• Edge holes
• Welded plates
• Bed-hook construction for fast installation

• Industrial & commercial façades

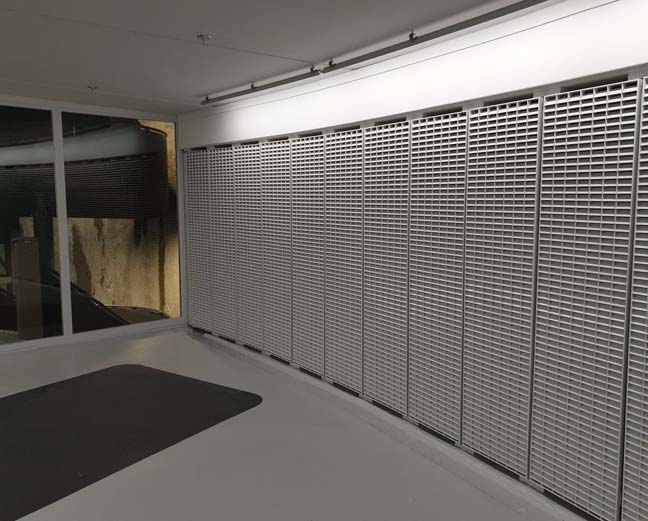

• Carpark screening
• Timber yard cladding
• Ventilated plant rooms
• Mechanical screening
• Infrastructure façades & service risers

• HDG Hot Dip Galvanised (ISO 1461)
• TVP Duplex Powder Coated (RAL colours)
• Stainless Steel Available on Request

• Local engineering and detailing support
• Optimised panel layout for façade performance
• Advice on wind loading, fixings, and NCC façade integration
• Seamless coordination with other Mentis ranges:
  RectaGrid™, SureSpan™, HeelGuard™
• National supply & project servicing

• Timber storage facilities
• Carpark facades
• Industrial feature screens
• Service risers & plant rooms
• Infrastructure buildings
