DPG – Press-Locked Gratings
DPG Press Gratings deliver crisp, symmetrical architectural grids with uniform mesh, excellent light penetration and strong rigidity. Their clean, open design provides robust load capacity while creating modern façades, interior ceilings, screens and ventilation panels that balance structural performance with refined aesthetics.
ABOUT
Architectural Press-Locked Grids for Facades & Interiors.
Dejo DPG Press Gratings provide crisp, symmetrical geometry suited to modern architectural façades, interior screening, ceilings and ventilation zones. Manufactured using precision press-locking, DPG panels offer uniform spacing, clean lines, excellent light transmission and long-term durability.
With capacities suitable for façade cladding and interior architectural loads, DPG is a versatile solution for commercial buildings, civic infrastructure and premium interior design.
OVERVIEW
DPG gratings use a press-locked system where the filling bars are pressed into notched bearing bars under high pressure. This creates a strong, rigid panel with perfectly aligned bars, ideal for both exterior and interior architectural conditions.
The open grid pattern provides natural ventilation, filtered daylight, and controlled visibility, while maintaining a consistent visual rhythm across all viewing angles.
DPG is widely used across Europe for timber storage façades, industrial screening, mechanical ventilation panels and premium interior fitouts.
KEY FEATURES
- Precision Press-Locked Construction
Ensures a permanent bond and perfectly aligned spacing for clean architectural results. - High Rigidity with Minimal Weight
Suitable for façades, ceilings, wall features and service screens. - Symmetrical, Modern Aesthetic
Maintains visual consistency from all angles. - Open Light & Airflow
Ideal for ventilated façades, plant enclosures and interior airflow management. - Versatile Mounting Options
Including welded plates, punched edges and bed-hook fixings.
SIZES & TECHNICAL OPTIONS
Bearing Bars (from sample DPG references):
- Lengths: up to 3000 mm
- Typical bar size: 30–3 mm or 40–3 mm (as shown in brochure examples)
- Height range: 25–60 mm
Filler Bars
- Typical mesh shown: 33×33 mm or 44×44 mm, depending on model
- Filling bar lengths: 200–2000 mm
Panels
- Usable area: 0.2–3.0 m²
- Recommended length:width ratio: 1:3 or 3:1
Fixing Systems
- Holes in edge bars
- Welded plates or welded-in plates
- Bed-hook attachment (common in timber facilities)
APPLICATIONS

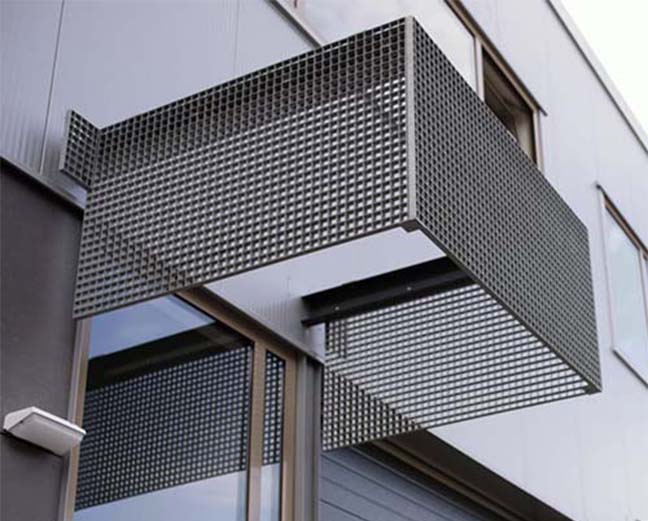

- Architectural facades
- Industrial screening
- Interior wall treatments
- Ventilation / plant enclosures
- Decorative ceilings
- Storage facility façades
MATERIAL & FINISH OPTIONS
- Hot Dip Galvanised (ISO 1461)
- TVP Duplex Powder Coated (custom RAL colours)
- Stainless Steel available on request
WHY SPECIFY THROUGH MENTIS
- Australian project support with European technology
- Local detailing, drafting and panel optimisation
- Coordination with AS 1170 wind loading & NCC façade requirements
- Integration with ModuLink™, RectaGrid™ and HeelGuard™ systems
IDEAL FOR
- Interior screens
- Ceiling features
- Public building facades
- Roof/plant screening
- Ventilation applications
