DPL – Louvre Grating
DPL Louvre Gratings use precision-angled filler bars (30°, 45° or 60°) to provide controlled airflow, privacy, shading and sightline management. Designed for architectural screening, ventilation and solar control, they deliver a clean, modern façade profile while balancing performance and visual refinement.
ABOUT
DPL LOUVRE GRATINGS
Architectural Screening. Solar Shading. Controlled Ventilation.
Dejo DPL Louvre Gratings provide precise visual control, airflow management, and shading performance for modern Australian architecture. Designed in Europe and supported locally by the Mentis Architectural Product Division, DPL combines architectural refinement with engineered strength, giving designers a clean and uniform façade solution for commercial, civic, and transport environments.
OVERVIEW
DPL Louvre Gratings use angled filler bars (30°, 45° or 60°) set within a pressure-locked frame to create sharp sightlines, consistent shading behaviour, and functional ventilation.

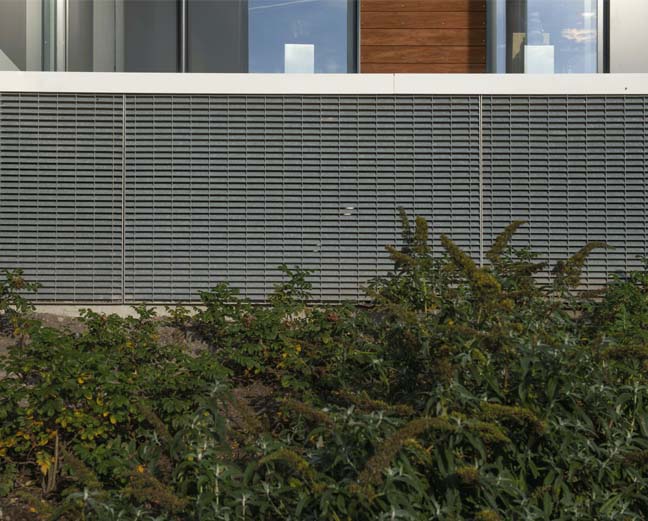

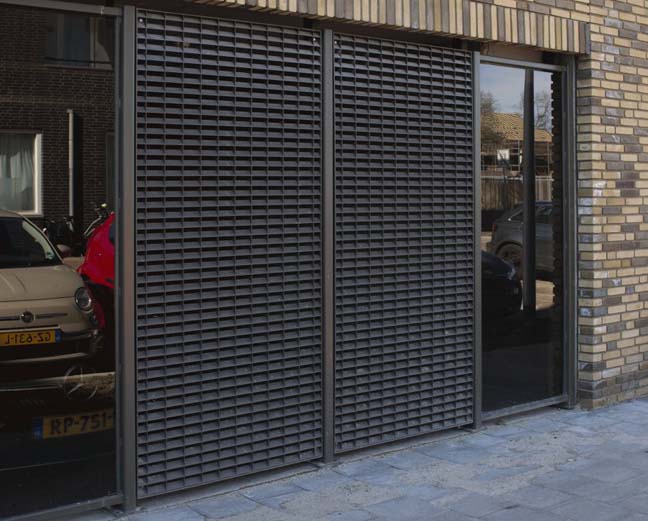

They are ideal for façade cladding, plant screening, mechanical ventilation zones, and internal architectural panels where a visually continuous surface is required without compromising performance.
DPL panels are available in multiple bar dimensions, mesh configurations, and finishes — enabling control over transparency, light diffusion, airflow, and privacy.
KEY FEATURES
- Clean Architectural Geometry
Precise pressure-locked construction for sharp lines and seamless panel transitions. - Configurable Vane Angles
30°, 45°, or 60° vanes tailor airflow, privacy and solar control requirements. - Engineered Performance
Suitable for exterior façades, high-traffic public buildings, plant rooms, and internal wall systems. - Multiple Bar Profiles
Bearing bar heights from 25–60 mm and thickness options from 2–5 mm. - Flexible Panel Sizes
Heights from 200–3000 mm and widths to 2000 mm. - Architectural Finishes
Available galvanised, powder coated (TVP Duplex), stainless steel or anodised.
SIZES & TECHNICAL OPTIONS
Bearing Bar Options
- Heights: 25 / 30 / 35 / 40 / 45 / 50 / 60 mm
- Thickness: 2 / 3 / 5 mm
Filler Bar Options
- Heights: 25–60 mm
- Thickness: 2 / 3 mm
- Must match bearing bar thickness.
Vane Angles
- 30°, 45°, 60° depending on required solar or privacy performance.
Panels
- Length: 200–3000 mm
- Width: 200–2000 mm
- Recommended panel ratio: 1:3 or 3:1
Fixings
- Edge perforations
- Welded plates
- Partial-filler rod raveling
Bed-hook construction for concealed fixing
APPLICATIONS
- Commercial & civic façades
- Ventilation screens & plant enclosures
- Solar shading structures
- Balustrade privacy treatments
- Internal wall linings & access panels
- Transport hubs & public infrastructure
MATERIAL & FINISH OPTIONS
- Hot Dip Galvanised (ISO 1461)
- TVP Duplex Powder Coating (RAL Colours)
- Pickled & Passivated Stainless Steel (304 / 316)
Anodised Aluminium available on request
WHY SPECIFY THROUGH MENTIS
Mentis provides complete architectural support across Australia, including:
- AS/NZS compliance guidance (NCC facades, AS 1170, AS 1657 where relevant)
- Local drafting and detailing services
- Project-specific optimisation of panel sizes
- National delivery capability
- Integration with other Mentis architectural ranges (RectaGrid™, HeelGuard™, SureSpan™)
IDEAL FOR
- Facades & cladding
- Mechanical plant screening
- Ventilation structures
- Shading & privacy applications
- Decorative internal wall treatments
Contact our sales team for assistance on your project
