DVR – Wood-Inlay Architectural Gratings

Dejo DVR Wood-Inlay Gratings merge the strength of steel grating with the warmth of natural materials. Designed for balconies, terraces, stairs, decks and decorative wall or ceiling elements, DVR combines durability with architectural appeal.

Panels are fully customisable, including mesh size, bar depth, inlay type, plank width, and finishing — offering designers complete freedom in both structural and aesthetic outcomes.

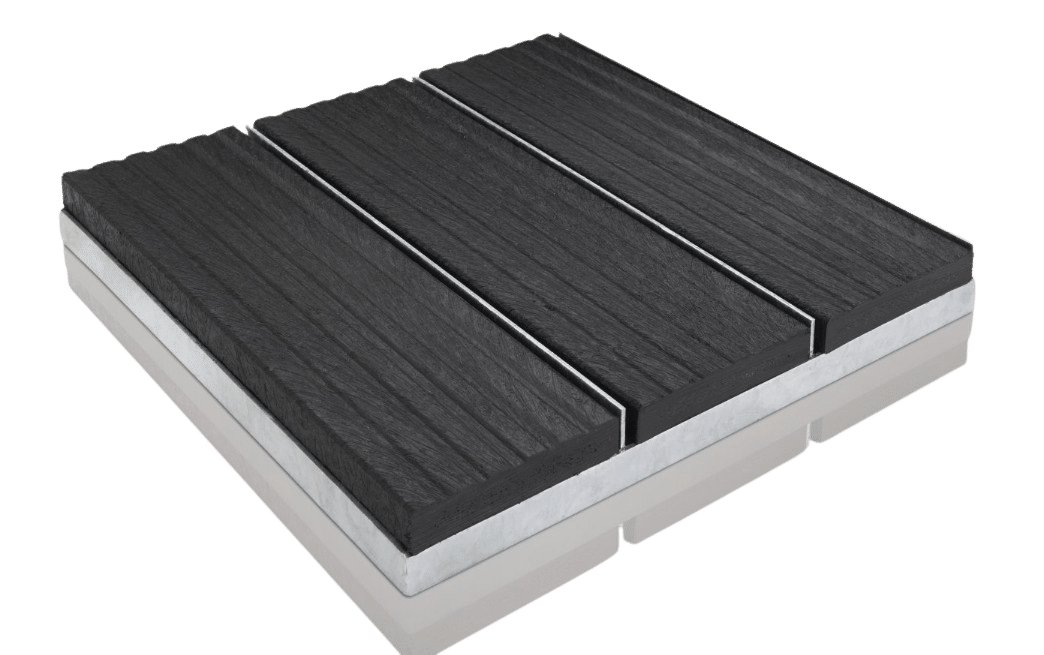

DVR panels feature precision steel or stainless-steel grating with special cutouts that accept timber, composite or bamboo planks. This hybrid system enables architects to combine structural performance with natural finishes in a single engineered panel.

Inlays can be supplied by Dejo or sourced to match project material palettes. Panels may be delivered pre-mounted or with loose inlays for on-site assembly.

The system is ideal for balconies, gardens, terraces, stair treads and ventilated façade accents.

• Custom Architectural Expression
  Clean steel lines combined with timber or composite textures.
• Load-Bearing Structural Capacity
  Suitable for decks, treads, landings, terraces and architectural flooring.
• Wide Material Compatibility
  Accepts wood, composite or bamboo inserts.
• Cost-Effective Construction
  Reduces total steelwork required when used as deck/floor panels.
• Mesh & Depth Flexibility
  Full customisation of mesh width, bar thickness and edge plates.
• Fast Installation
  Supplied pre-mounted or ready for on-site plank installation.

Standard Example (from brochure):

• Bearing bars: 60×4 mm
• Mesh: 111 mm (bearing)
• Filling bars: 30×3 mm, mesh 99 mm
• Inlay planks: 98 mm wide × 28 mm thick (typical)

General Parameters:

• Maximum panel size: 3 m²
• Configurable mesh widths
• Bar thickness 2–5 mm depending on load
• Multiple edge plate options

Inlay Options:

• Hardwood
• Composite plank
• Bamboo plank
• Plastic inlays

Finishes:

• HDG to ISO 1461
• Stainless steel (pickled & passivated)
• TVP Duplex Powder Coating

• Balconies & terraces
• Hotel and hospitality decks

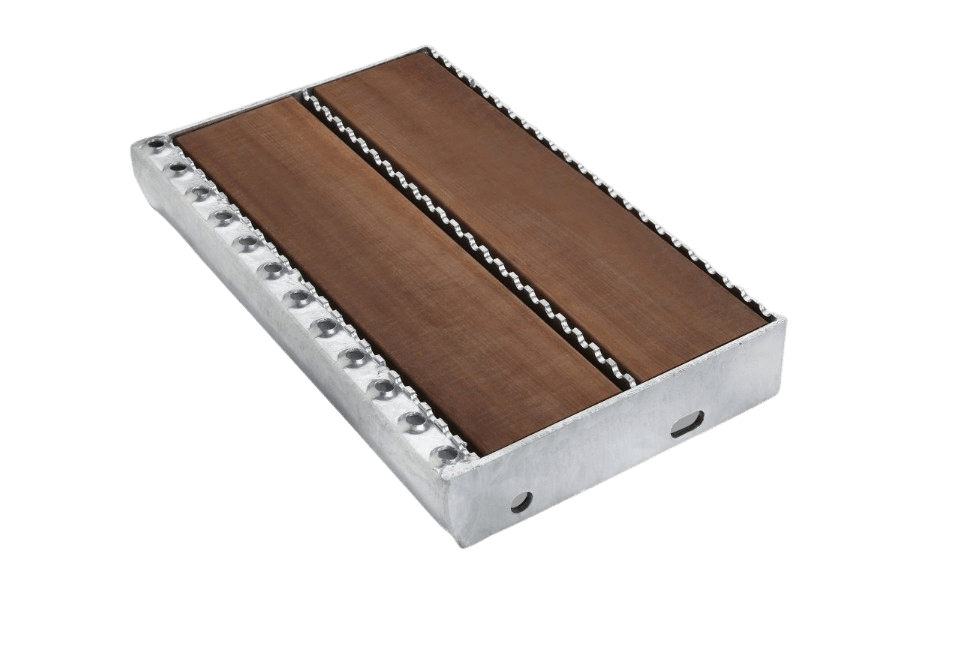

• Architectural stair treads
• Gardens & courtyard walkways
• Wall cladding & decorative screens
• Façade accents
• Pedestrian features in retail / public spaces

• Hot Dip Galvanised Steel
• Stainless Steel (304 / 316)
• TVP Duplex Powder Coating
• Inlays in wood, composite, bamboo or plastic

• Assisted selection of bar sizes & load capacities
• Custom design support for balcony and deck spans
• Local detailing compatible with Australian fixings & supports
• Integration with modular stair and handrail systems

• Balconies & terraces
• Hospitality decks
• Internal/external stair treads
• Gardens & courtyards
• Decorative wall and ceiling elements

• Mesh widths, thicknesses, spans and edges
• Supplied with or without inlay material
• Pre-mounted or loose inlays available
• Inlay options include hardwood, composite, and bamboo
