SureSpan™ is a high-performance walkway plank system engineered for safe access across industrial, commercial, and elevated environments. Built from factory-pressed, perforated steel or aluminium, each SureSpan™ profile delivers anti-slip performance, modular compatibility, and clean installation with no on-site welding required.

Available in five precision-formed surface types — Plain (PL), Serrated (SR), Slotted (SL), Slotted Dimpled (SLD), and Traction (TP) — the SureSpan™ system supports directional and multi-directional foot traffic. All profiles exceed slip resistance requirements under AS 4586 and are fully compliant with AS 1657:2018 and AS/NZS 1170.1 for platforms, catwalks, and access walkways.

Plank Types

SureSpan™ planks are available in:

• Widths: 225 mm / 300 mm
• Side Leg Depths: 65 mm or 100 mm
• Standard Length: 5800 mm (or cut-to-size)
• Materials: Steel (Z275 or HDG), Aluminium

Corrosion Resistance

Available in Z275 galvanised steel, HDG (AS/NZS 4680), or marine-grade aluminium, ensuring suitability across industrial, mining, and coastal environments.

• Mild Steel
• HDG
• ZE270
• Aluminium

Compliance & Performance

SureSpan™ is fully compliant with the following:

AS/NZS 4680

Hot-dip galvanising coating requirements

Installation & Modularity

SureSpan™ is engineered for tool-less, weld-free assembly on modular or traditional support structures.

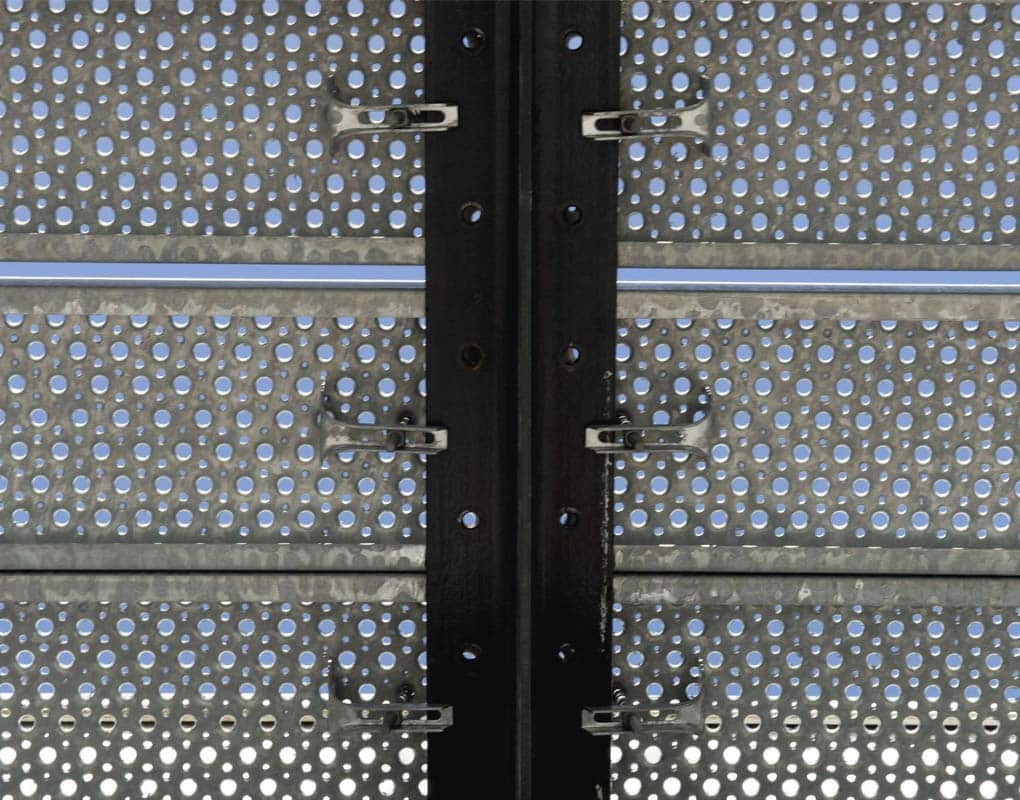

• Fixing Systems:
  – Clip-Fix brackets for RHS or bearer install
  – Self-drill through-pan fasteners
  – Fishplates for multi-panel runs
• Optional End Treatments:
  – Factory notching
  – Pre-formed directional ends
  – End caps or anti-trip plates
• Modular Compatibility:
  – Integrates with ModuLink™ handrails and toeboards
  – Pre-sized for 2.0 m spans and 900 mm walkways
  – Supports edge kerbs and walkway brackets
